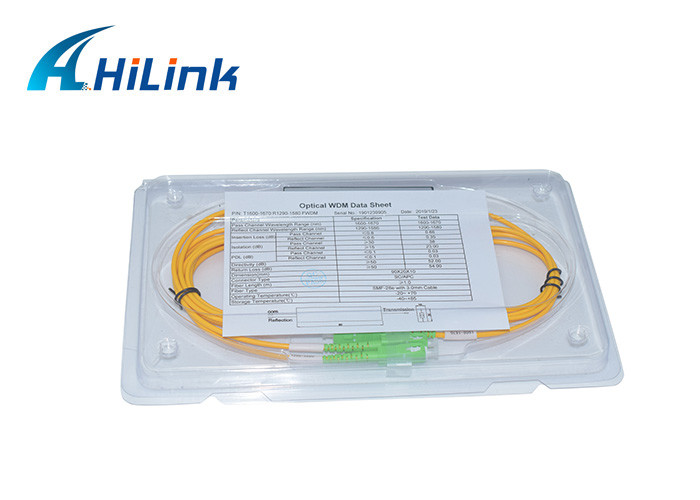

High Stability FWDM Module Wide Wavelength Range CE ROHS Certification
Features
Wide Wavelength Range
Low Insertion Loss
WDM system
High Channel Isolation
High stability and reliability
Applications
System Monitoring
WDM system
Transmitters and Fiber
Fiber optical amplifier
Fiberoptic lnstruments
FWDM Parameter
| Parameter | | FWDM 4/35 | FWDM 5/35 | FWDM 35/5 |
| Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360 & 1480~1500 |
| Reflection Band1 Wavelength Range (nm) | 1260 ~ 1360 | 1260 ~ 1360 | 1540~1560 |
| Reflection Band1 Wavelength Range (nm) | 1540~1560 | 1480~1500 |
| Insertion Loss (dB) | Reflect Channel | ≤0.6 |
| Pass Channel | ≤0.8 |
| Pass Band Rippler(dB) | <0.3 |
| Isolation (dB) | Reflect Channel | > 15 |
| Pass Channel | >30 |
| Insertion Loss Temperature Sensitivity (dB/°C) | <0.005 |
| Polarization Dependent Loss (dB) | <0.1 |
| Polarization Mode Dispersion (ps) | <0.1 |
| Directivity (dB) | >50 |
| Return Loss (dB) | >50 |
| Maximum Power Handling (mW) | 500 |
| Operating Temperature (°C) | -20 ~+70 |
| Storage Temperature (°C) | -40 ~+85 |
| Package Dimension (mm) | 1. Φ5.5 x L34(for 900um Loose tube or bare fiber )) 2. L90xW20xH9.5(for 2.0 or 3.0mm Cable) |
